Product type: TNB1L-32(c)
Protection: Ground fault
Rated current(A), In: 16A, 20A, 25A, 32A

Service hotline
0577-8801 9159

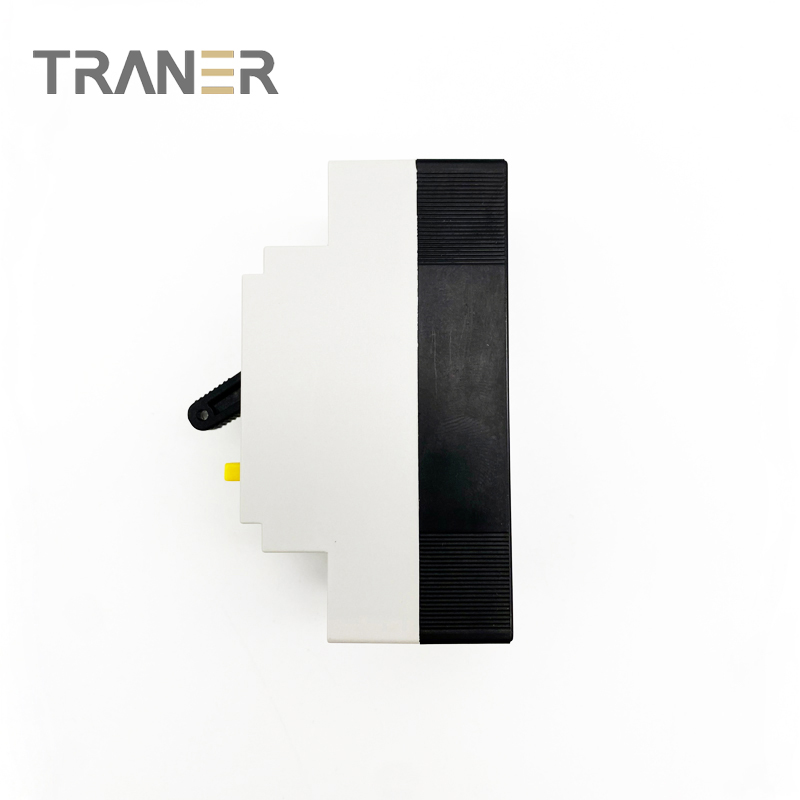

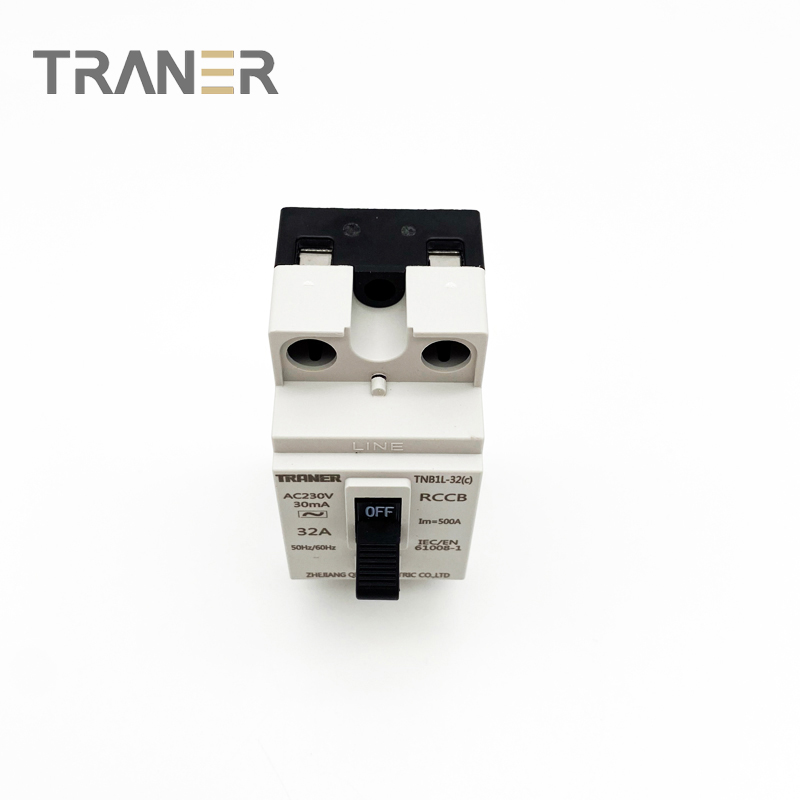

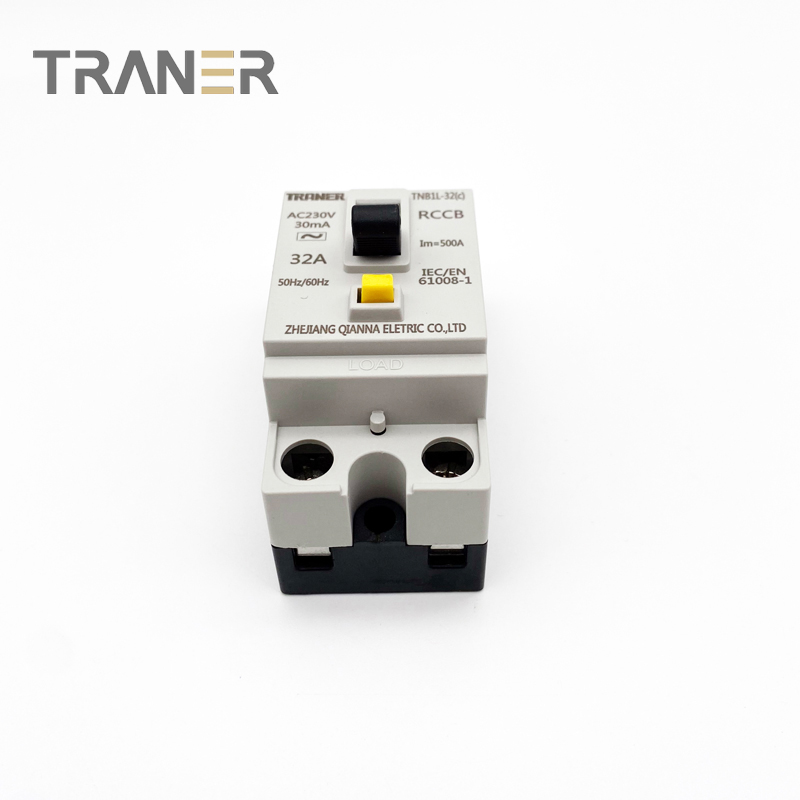

TNB1L-32 series RCCB
Product typeTNB1L-32(c)
ProtectionGround fault
Rated current(A)16A, 20A, 25A, 32A
Rated residual currentOperating, IΔn(mA)15mA, 30mA
Non-operating, IΔno(mA)7.5mA, 15mA
Poles2 poles
Rated voltage(V)110V AC, 220V AC
Residual current off-time0.1 s
StandardIEC/EN 61008-1, GB16916.1
ApprovalCE, CCC
Type of tripGround faultElectronic
Breaking capacity(kA)2.5 kA
EnduranceElectrical life1000 operations
Mechanical life2000 operations
Material of bodyBasePlastic / Bakelite
Cover in grey colorPlastic
Cover in black colorBakelite
Type of operationAC
Length*Width*Height(mm)70mm*32mm*53mm
